MIL-V-62008 Vehicle, Combat Engineer, Full Tracked, 165 Mm Gun, M728This specification covers one type of full-tracked armored combat vehicle which mounts a 165MM gun as primary weapon.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54

MIL-V-62008B(AT)

TARGET AIMING POINTS ARE

DISTANCE FROM TARGET TO                            POSITIONED TO REFLECT

CL GUN TRUNNIONS = 40 FEET                            CONVERGENCE OF THE LINES OF SIGHT WITH THE MAIN GUN

.015 TOLERANCE ON ALL                                                 AT 600 METERS FOR ALL GUN DIMENSIONS UNLESS OTHERWISE SPECIFIED.         POSITIONS.

(ALL DIMENSIONS IN INCHES UNLESS

OTHERWISE STATED.)

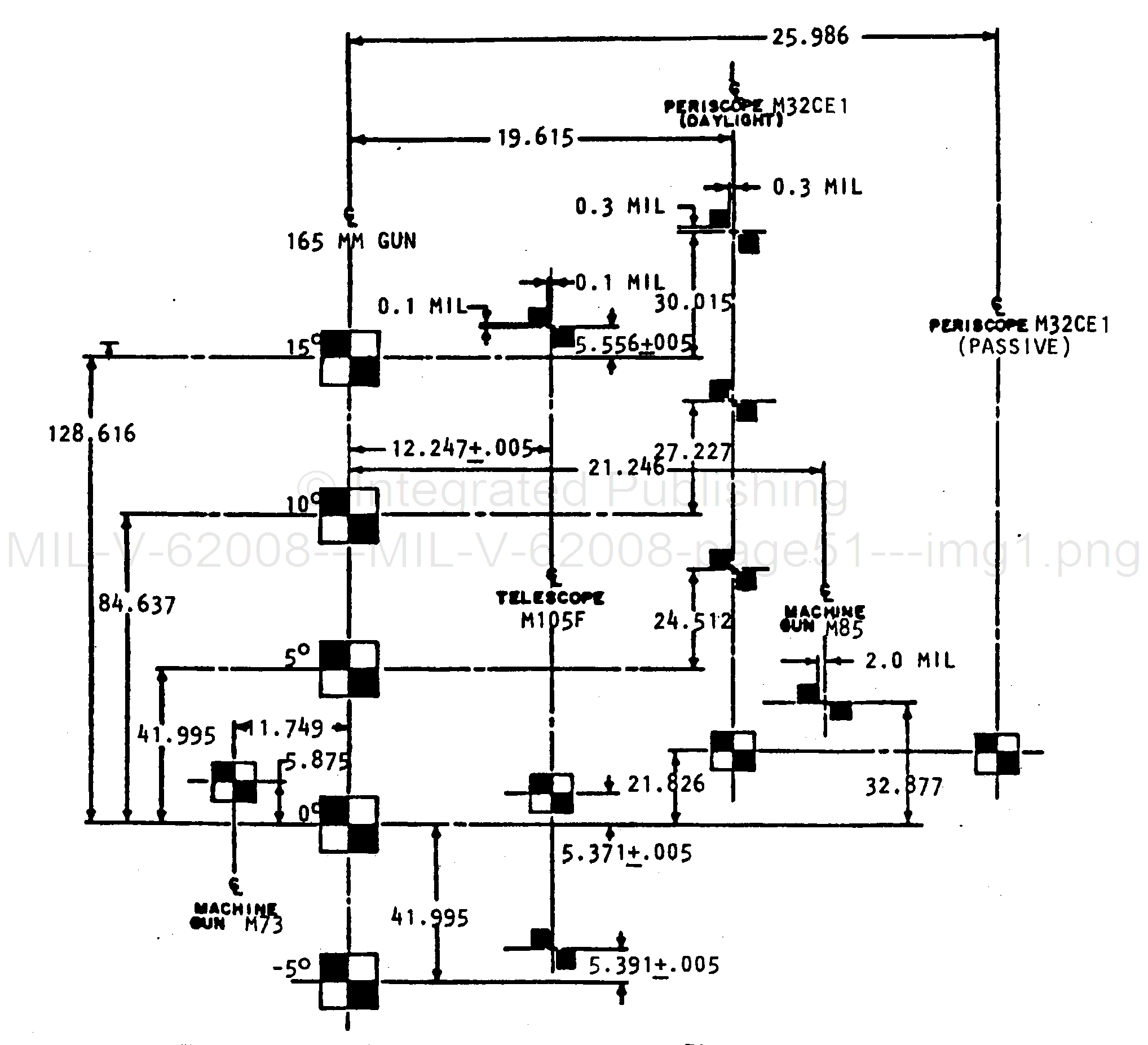

FIGURE 3.  Boresight and synchronization target.

51
